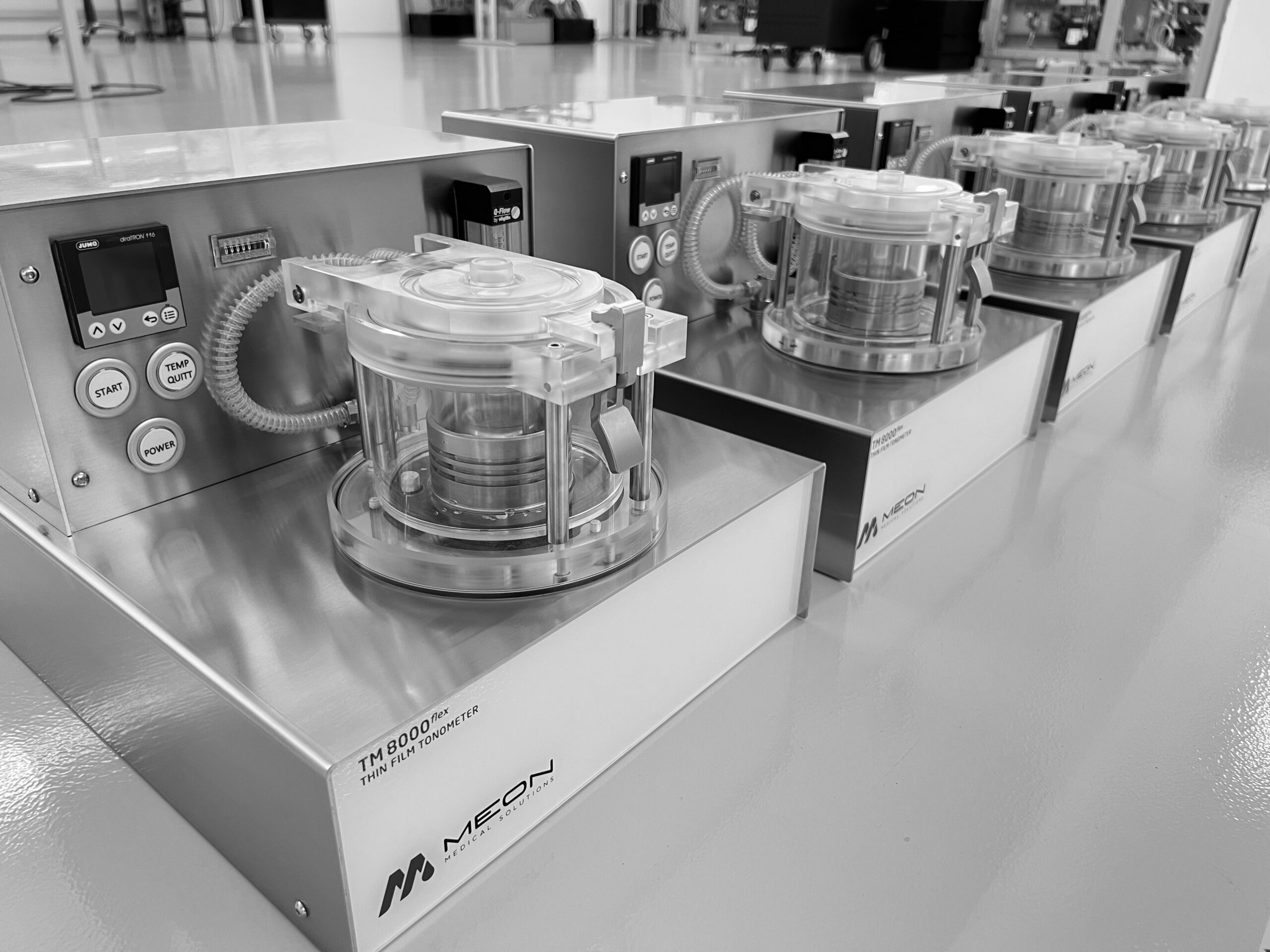

The TM 8000 Flex is a high precision device for the equilibration of blood and aqueous solutions over an extended temperature range (20°C – 39.9°C). The TM 8000 Flex expands on the current advantages of the TM 8000 with an innovative active heating and cooling system, enabling reliable tonometry of samples deviating from 37°C. Best performance is achieved using the MEON High Precision Gas Mixing Sytem (HP-GMS).
- Tonometered whole blood samples ensure the most accurate quality control of blood gas parameters
- Fast equilibration due to precise rotation control & maximal surface contact
- Wide sample temperature range from 20°C to 39.9°C, adjustable in 0.1°C increments
- Innovative and powerful active heating and cooling system ensure the selected target temperature can be achieved quickly
- Easy sample handling and safe operation
- Equilibration time: 20 minutes
- Sample volume: max. 8 ml
- Temperature stability: 37.0°C ± 0.1° (98.6 °F – 103.8°F)
- Temperature setting range: 20.0°C – 39.9°C (68°F – 103.8°F)
- Heat up time: ≤ 20 minutes
- Cooling time: ≤ 30 minutes
- Dimensions (WxDxH): 330 x 410 x 270 mm
- Weight: 16 kg
- Ambient temperature: 15°C – 30°C (59°F – 86°F)
- Operating voltage: 100 – 240V AC 50-60 Hz
- Electrical power consumption: 200VA max
- Electrical protection class: I
- Gas connection: Quickfit Connector, 4mm
- Required gas flow: 3.5 – 4.5 l/h
- Optimal performance with MEON High Precision Gas Mixing System:
- Easy and immediate use of any O2, CO2 and N2 gas concentration
- Compatible with inexpensive primary gas supply (pure O2, CO2, N2 required) – no precision gas cylinders for individual gas concentrations
- Immediate availablility after configuration
- Primary and secondary pressure flucations compensated by microcontroller-controlled timing
- Serial interface available
More information regarding our Gas Mixing System is available under „Resources“.
To read more about the relevance and quality of our tonometers, please take a look at the scientific publications and product flyers listed below.
- The (in)validity of volatile POCT parameters from patients beyond normothermia (EP23_Postersession)
- Richtigkeits- und Präzisionsoptimierung bei pO2 von BGAs (UKR_posterprojekt_363)
- Product flyer for high precision gas mixing system (HPGM Flyer)
- Product flyer for TM 8000 Flex (TM8000flex_Flyer_E_Rev1_0)
